传导/辐射 参考信号发生器CSG-050
发布时间: 2017-06-29 11:44
Reference Signal Source for LISNs
Frequency Steps of 100kHz & 500kHz
Battery Operated
CSG-050 Comb Generator
Product Overview
Reference Signal Source for LISNs
Frequency Steps of 100kHz & 500kHz
Battery Operated
Three-Year Warranty
The CSG-050 Comb Generator is a
conducted reference signal source to
test Line Impedance Stabilization(LISN).
The Comb Generator output has the
harmonics of the fundamental
frequency. It has two user selectable
frequency step sizes of 100kHz and
500kHz.
The CSG-050 has high impedance to the
external line voltage, AC or DC up to
230V. This feature allows the Comb
Generator to be used while the LISNs are
connected to external power source.
The CSG-050 is powered by
rechargeable internal NiMH batteries.
Please use it after fully charged, because
the cable of charger may has radiated
signals to affect the measurement result.
Application
The main application of the CSG-050
comb generator is to quickly verify
conducted emission test setup. Most
EMC labs has to do intermediate checks
to verify if the conducted emission
results have diverged or not in per day
or week.
Accessory
Charger (12V 1A)
1m power cable (not for charging)
15cm cable for connect to Spectrum
Analyzer / Receiver directly
Specifications
|
Intended Application |
Reference Signal Source for LISN verification |
|
Frequency Step Size |
100kHz or 500kHz |
|
Frequency Stability |
50ppm |
|
Amplitude Stability |
±0.1dB |
|
Input Voltage |
10-15V DC 1A |
|
Battery Type |
6V NiMH, 2300mAh |
|
Operating Time |
>20 Hours Typical |
|
Charging Time |
>6 Hours Typical |
|
External Indicators |
BATT. Low, Charging, RF out |
|
Dimensions |
13*7*5 cm |
|
Weight |
1kg |

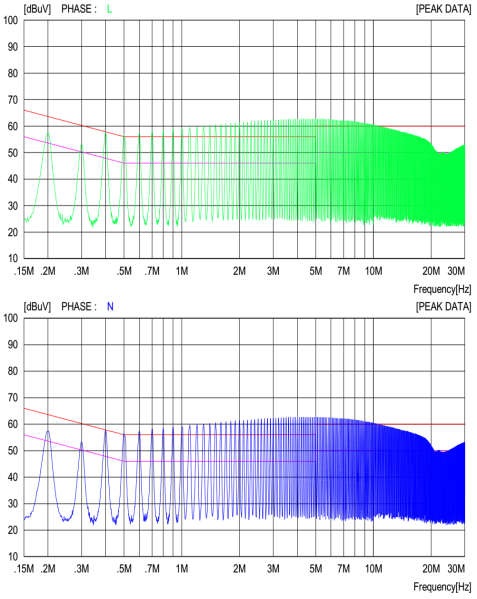

Typical result on 100kHz

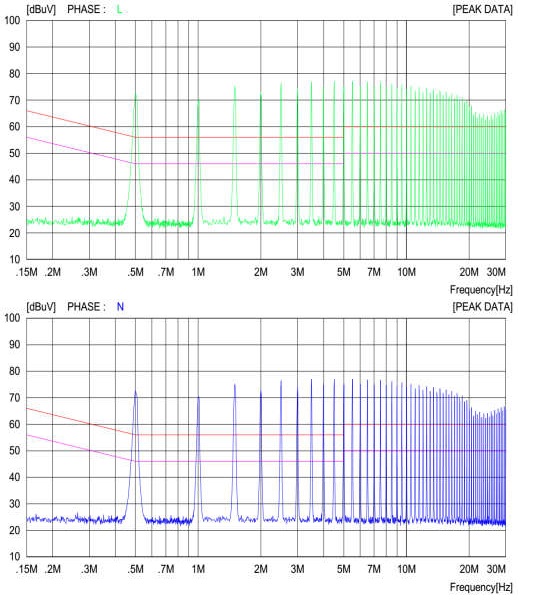

Typical result on 500kHz
